Details: Category: Industrial control instruments

ID Regulators & process control

Series IC 917 LX

The IC 917 are regulators with two points of intervention with PID control the first and ON / OFF in the second position, able to work in both cold & hot applications.
Dimensions: 32 x 74 mm Depth 60 mm.
They have a TTL connection to Copy Card key programming.
This same connection is used to connect the instrument to the system of data collection and management of Televis, through the connection module TTL-RS485 ADAPTER BUS 130, or a network via ModBus protocol converter module SMART ADAPTER.

PRODUCTS AVAILABLE
Model	Inputs	Consumption	Output
IC 917 LX NTC/PTC 12V AC/DC	1 Probe NTC/PTC	12V AC/DC	2 relays
IC 917 LX NTC/PTC 230V AC	1 Probe NTC/PTC	230V AC	2 relays
IC 917 LX PT100/TC 12V AC/DC	1 PT100 Probe or 1 TC (J o K) Probe	12V AC/DC	2 relays
IC 917 LX PT100/TC 230V AC	1 PT100 Probe or 1 TC (J o K) Probe	230V AC	2 relays

Series EW 4800

Eliwell regulators with two points of intervention, with the first PID control and ON / OFF in the second, able to work in both hot & cold applications. They have a TTL connection to Copy Card programming key.
This same connection used for connecting the instrument to the system of data collection and management of Televis, through the connection module TTL-RS485 ADAPTER BUS 130, or a network via ModBus protocol converter module SMART ADAPTER.
The 4821 models also feature an output voltage or current analog and digital input. The 4822 models also have a RS 485 serial output.

PRODUCTS AVAILABLE
Model	Inputs	Consumption	Outputs
EW 4820 T	Pt 100, NTC, PTC, Pt1000, TC(J,K,R,S yT)	2 Versions for each model 12/24V DC 12/36V AC 90 - 240V DC 50/60Hz	2 relays
EW 4820 P SSR	Pt 100, NTC, PTC, Pt1000, TC(J,K,R,S yT)		1 SSR +1 relay
EW 4820 I / V	0...20mA, 4...20mA, 0...5V, 0...10V		2 relays

EW 4821 Multi-probe	Pt 100, NTC, PTC, Pt1000, TC(J,K,R,S yT)	2 Versions for each model 12/24V DC 12/36 V DC 90 - 240 V DC 50/60Hz	2 relays + 1 analog output I / V
EW 4821 I / V	0...20mA, 4...20mA, 0...5V, 0...10V		2 relays + 1 analog output I / V

EW 4822 Multi-probe	Pt 100, NTC, PTC, Pt1000, TC(J,K,R,S yT)	2 Versions for each model 12/24Vcc 12/36 V DC 90 - 240 V DC 50/60Hz	2 relays + 1 analog output I / V+ RS485
EW 4822 I / V Output I	0...20mA, 4...20mA, 0...5V, 0...10V		2 relays + 1 analog output I + RS485
EW 4822 I / V Output V	0...20mA, 4...20mA, 0...5V, 0...10V		2 relays + 1 analog output V+ RS485

Series EW7220

The EW 7200 are regulators with two or three points of intervention, PID or ON / OFF able to work in both applications of cold and heat. The 2 points of intervention can be configured as regulators neutral zone.
All models have TTL connections for Televis systems, and Copy Card (input parameters)
The models with input voltage or current control can be used, even humidity or pressure or any physical variable capable of being converted into current or voltage signal.

PRODUCTS AVAILABLE
Model	Configurable Input	Consumption	Outputs
EW 7220 NTC	PTC, NTC, PT1000	2 Versions for each model 12/24V DC 12/36V DC 90 - 240V AC 50/60Hz	2 relays
EW 7220 PT100	PT100
EW 7220 TC	TCJ, TCK, TCR, TCS, TCT
EW 7220 HR	0/20mA, 4/20mA, 0/1V, 0/5V, 0/10V

EW 7221 Multi-probe	NTC, PTC, Pt1000, Pt100 TCJ, TCK, TCR, TCS, TCT	2 Versions for each model 12/24V DC 12/36V DC 90 - 240V AC 50/60Hz	3 relays + current or voltage output
EW 7221 I / V	0/20mA, 4/20mA, 0/1V, 0/5V, 0/10V

EW 7222 Multi-probe	NTC, PTC, Pt1000, Pt100 TCJ, TCK, TCR, TCS, TCT	2 Versions for each model 12/24V DC 12/36V AC 90 - 240V AC 50/60Hz	3 relays + current or voltage output + RS485
EW 7222 I / V	0/20mA, 4/20mA, 0/1V, 0/5V, 0/10V

{tab Series BTC|open|red}

Temperature and Process control
Recorders

MODELS AVAILABLE
Model	Input	Power Supply	Output	Brochure	Manual
C91 (48x48mm)	PT100 DIN, PT100 JIS Thermocouple J, K, E, B, R, S, N, L	90 - 240 V AC 50/60Hz	Up to 2relays Possibility of communication output

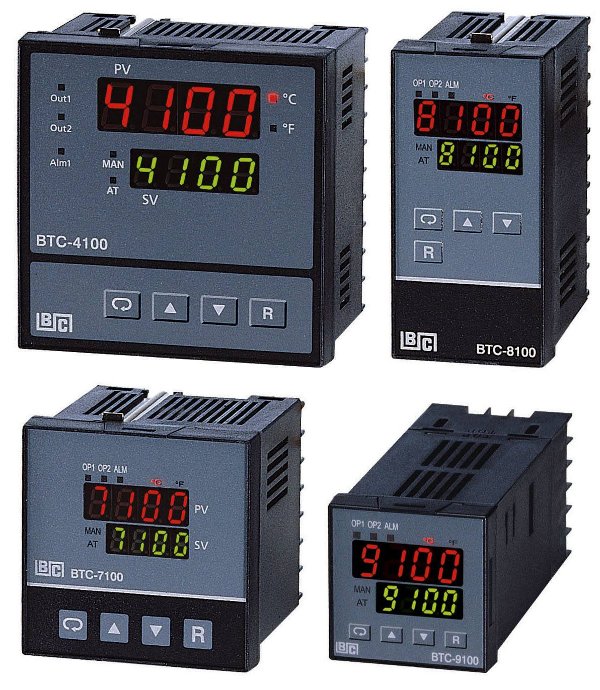

BTC4100 (96x96mm) BTC7100 (72x72mm) BTC8100 (96x48mm) BTC9100 (48x48mm)	PT100 DIN, PT100 JIS Thermocouple J, K, E, B, R, S, N, L	Two versions: 90 - 240Vac 50/60Hz 11 - 26 V AC/DC	Up to 2relays + 1alarm + Communication output depending on model

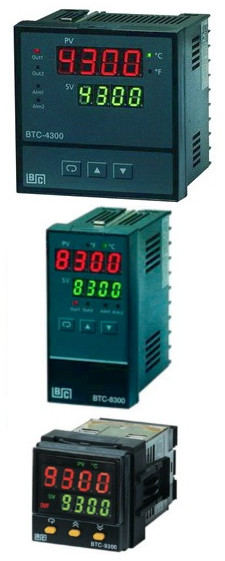

BTC4300 (96x96mm) BTC8300 (96x48mm) BTC9300 (48x48mm)	PT100 DIN, PT100 JIS Thermocouple J, K, E, B, R, S, N, L 0/20mA, 4/20mA, 0/1V, 0/5V, 0/10V	Two versions: 90 - 240Vac 50/60Hz 11 - 26 V AC/DC	Up to 2relays + 1alarm + Communication output depending on model		Manuals List of Parameters
BTC2500 (24x48mm)	PT100 DIN, PT100 JIS Thermocouple J, K, E, B, R, S, N, L 0/20mA, 4/20mA, 0/1V, 0/5V, 0/10V	Two versions: 90 - 240Vac 50/60Hz 11 - 26 V AC/DC	Up to 2relays + 1alarm + Communication output depending on model

Paperless Recorder (166x144mm)	They can be mountedafter painting, hole inthe panelof 138x 138mm,orvia adesktopaccessory that includescarrying handle. 6.4" TFT LCD 640 x 480 pixel resolution. 256 colours The user can access data on the screen as well as en cite from a remote place via RS-232, RS-485, RS-422 serial interface or Ethernet networking. The historical data can be stored in flash ROM, Compact Flash Card, or collected in a remote host PC for data evaluation and print-out		Model VR06 Up to 6 channels
Paperless Recorder (166x144mm)			Model VR18 Up to 18 channels

ELECTRONIC THERMOSTATS

ELECTRONIC THERMOSTATS

ELECTRONIC THERMOSTATS	MODEL	FORMAT	POWER SUPPLY	INPUTS	OUPUTS
	IDW 961	32 x 74 mm depth 59 mm	230Vac	1 NTC probe included	1
	IDW 971			2 NTC probe included	2
	IDW 974			2 NTC probe includeds	2
	EW PLUS 961		230Vac (Packing for manufacturer)	1 NTC probe	1
	EW PLUS 971			2 NTC probe	2
	EW PLUS 974			2 NTC probe	3
	EW PLUS 978			2 NTC probe	4
	ID PLUS 902		According to model 12Vac/dc 230Vac	1 Configurable NTC/PTC/PT1000	1
	IDPLUS 961			1 Configurable NTC/PTC/PT1000	1
	IDPLUS 971			2 Configurables NTC/PTC/PT1000	2
	IDPLUS 974			3 Configurables NTC/PTC/PT1000	3
	IDPLUS 978			2 Configurables NTC/PTC/PT1000	4
	IC PLUS 902		According to model 12Vac/dc 12/24 Vac/dc 230Vac	According to model	1
	IC PLUS 915		According to model 12Vac/dc 12/24 Vac/dc 230Vac	According to model	2
	EW PLUS 400	32 x 74 mm depth 36mm (Short thermostat)	12Vac/dc (Packing for manufacturer)	1 NTC probe	1
	DR 4020	DIN rail 4 mód.	According to model 12...36Vac/dc 95...240Vac	Configurable According to model	2
	EW 7210	72 x 72 mm depth. 80 mm	According to model 12...36Vac/dc 95...240Vac	Configurable According to model	1
	WM 961 WM 971	Thermostats for an intervention point for wall mounting Dimensions 124x80mm Depth 25mm. External probe, PTC / NTC configurable, not included

Digital temperature indicators

Digital temperature indicators

Digital temperature indicators for panel mounting. Complete information in PDF

AVAILABLE MODELS
	MODEL	FORMAT	POWER	INPUTS
	EWTL 300	48 x 28,6 x13,5 mm	Battery 1,5 V (duration 12 months)	Probe incorporated
	EWTL 310	62 x 30 x 19 mm	Battery 1,5 V (duration 12 months)	Probe incorporated
	DST 30	66 x 30 x 11,6 mm	Integrated solar battery	Probe incorporated
	EM 300 LX NTC ESP	74 x 32 mm. Depth 59 mm	230 Vac 50/60 Hz	1 NTC Probe
	EM PLUS 600	74 x 32 mm. Depth 30 mm	According to model 12 Vac/dc 12 ...24 Vac/dc 230 Vac	According to model NTC / PTC PT100 / TCJ / TCK 0..1V / 0..5V / 0.10V / 0..20mA / 4..20mA
	C 91	48 x 48 mm. Depth 86 mm	90 ...250 Vac 47 / 69 Hz	According to model J, K, T, E, B, R, S, N, L, RTD: PT100 DIN, PT100 JIS 4..20mA
	DO 9404	96 x 96 mm. Depth 120 mm	According to model 24 Vac/dc 230 Vac	2 configurable inputs 0/20,4/20 mA 0/1, 0/5, 0/10 V
	HD 9022	96 x 48 mm. Depth 145 mm	According to model 24 Vac/dc 110....230 Vac	Configurable 0/20, 4/20 mA 0/1, 0/5, 0/10 V, Pt 100
