DATA LOGGING AND ALARM SENDING SYSTEM

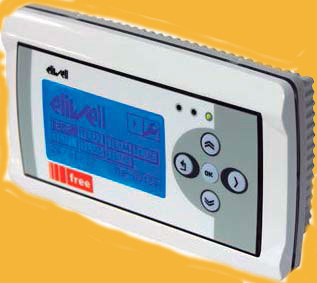

	»Eliwell EVODATA-100 is a recording and monitoring system compatible with up to 6 Televis IN data entry modules. »Allows remote connection via a simple web integrated in the device, as well as compatibility With Twin-Data for remote download of data in tables and graphs. (Free Software) »Sending alarms by email; Unencrypted protocol. »Compatible with Televis Twin for alarm reception. »Up to 6 Televis IN modules (5 probes and 2 D.I. by Televis IN). »Management of 1 NTC probe and 1 probe 4 ... 20 mA direct connection to EVODATA-100.

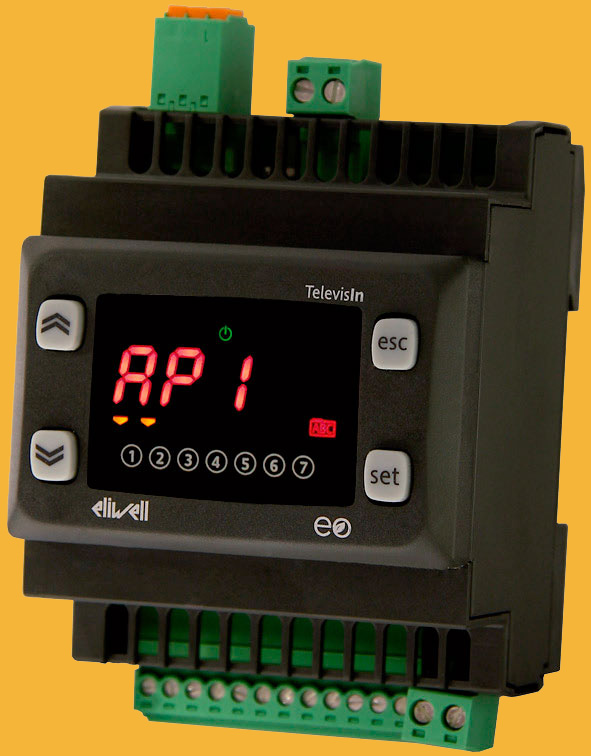

	» Televis IN 5 analog / digital inputs 2 digital inputs

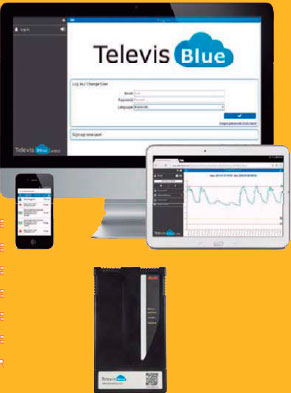

TELEVIS BLUE

CLOUD-BASED MONITORING SYSTEM FOR SMALL AND MEDIUM FACILITIES

»System for monitoring based on the cloud and especially dedicated for small systems
And medium dimensions.
»Collection of data accessible from the web.
»Pre-activated kit for simplicity and speed.
»Uses only the protected M2M mobile data connection itself to transfer the information from
    Installation without the need for any additional configuration.
»Collect and transfer information for 12 months from the first activation.
»Renewable annually. In case of voluntary termination of the license, the data will remain available for
    Another 12 months.
»No download or update required. Just log on to the website www.Televisblue.com
    Eliwell is responsible for updating the software, publishing new features and updating the online manual.

Televis Go

Supervision & monitoring software (PC)

	Software supervision & control Software for supervision & control of more than 800 Eliwell refrigeration devices. Works with Windows 2000 y XP operating systems NEW CONFIGURATION 6/15 APPARATUS Greater flexibility with configurations of 6 and 15 devices WEB & MULTI-TASK FUNCTION Thanks to the Web operation its possible to remote connect simultaneously with multiple users to the same system ENVIRONMENT THROUGH SIMPLE SYNOPSIS Extremely simple and adaptable environment by Synoptic. REAL-TIME DATA MANAGEMENT Ideal for monitoring centers where a continuous, high-capacity data management and real-time analysis is required. MANAGEMENT AND OVERSIGHT OF ALARMS Management and alarm monitoring by sending SMS, E-mail and fax. CONVERTER INCLUDED Include communication Module RS-232 / RS-485-TTL (PC-Interface)
MODELO	APPLICATIONS
KIT Televis GO 30	Registration and control of up to 6 instruments
KIT Televis GO 60	Registration and control of up to 15 instruments
KIT Televis GO 240	Registration and control of up to 30 instruments
All kits include 1 Serial Adapter & 1 serial cable 1.5m
CONNECTION MODULES
TELEVIS IN	Read/write signal module and alarm management for systems
TELEVIS OUT
OLDER CONNECTION MODULES
MODEL	APPLICATIONS
EWTV 200	Temperature reading module (3 inputs PTC)
EWTV 240	Universal read module(3 inputs 4..20mA)
EWTV 270	Digital input module
EWTV 280	Module for alarms
EWTW 150	Portable keyboard
BUS ADAPTER 130	Connection module TTL - RS485
BUS ADAPTER 150
BUS ADAPTER 350
SMART ADAPTER 200/1	Converter Modbus for Televis network	1 instrument Modbus
SMART ADAPTER 200/3		3 instrument Modbus
SMART ADAPTER 200/5		5 instrument Modbus

Televis Twin

Central reception and distribution of alarms integrated with all Eliwell systems.

	SIMULTANEOUS MONITORING CENTERS Its simple surroundings and adaptability to different systems makes it ideal for those users who need to monitor multiple sites simultaneously. REAL-TIME INFORMATION Its main screen shows a clear set of icons and colours of the real situation of all managed facilities. ELIWELL SYSTEM INTEGRATION It integrates directly with all Eliwell systems in modules and is expandable to other systems ACCEPTANCE AND DISTRIBUTION OF ALARMS Receive alerts via SMS, e-mail, TCP / IP and can be redistributed to multiple recipients in terms of hours, days of the week, alarm duration etc, automating all the tasks of advertising. SMS AUTO SENDING Configurable automatic forwarding of SMS for critical alarms if they have not been resolved in the time interval specified. LIFE TEST MODULE Integrity module "Test of Life" that will ensure that all connectivity to the system are in perfect condition. INTEGRATED BACKUP Backup Software for backup data automatically.
MODEL	APPLICATION
TWIN 100 / D10	Supervision of up to 10 installations
TWIN 100 / D20	Supervision of up to 20 installations
TWIN 100 / D50	Supervision of up to 50 installations
TWIN 100 / D100	Supervision of up to 100 installations
TWIN 100 / D500	Supervision of up to 500 installations

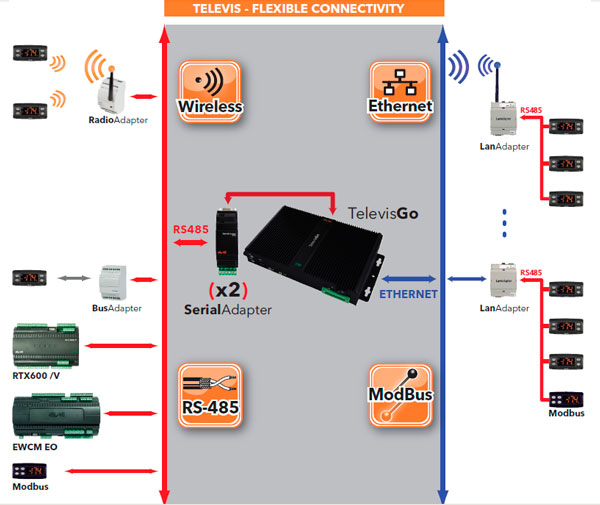

LAN, Web, Wireless & Cabled Network Connectivity

LAN
MANAGES UP TO 15 NETWORK SYSTEMS WITH ONE EQUIPMENT, WHEREVER THEY ARE.

	This intrument allows us to communicate through an installation of an intranet, wired or WIFI
	LAN ADAPTER ETHERNET
	LAN ADAPTER WIFI

WIRELESS

SYSTEM FOR MONITORING AND CONTROL OF TELEVIS SYSTEM

	WIRELESS NETWORKS The system can reach the nodes of the network through multiple routes, improving coverage. This implies that the breakdown of a node does not affect the proper functioning of the network. In addition, any node can operate at the same time as a repeater.
	MODULES
	RADIO ADAPTER TTL
	RADIO ADAPTER / S
	RADIO ADAPTER EXT
	RADIO ADAPTER / S EXT
	RADIO KEY TELEVIS
	KIT ANTENA
	RADIO ADAPTER TEST
	MIXED NETWORKS Eliwell technology combines wired networks with wireless networks at the same facility.

ETHERNET & WIFI CONNECTIVITY INSTRUMENTS

WEB POLLING SYSTEM FOR MONITORING OF A SINGLE POINT
	Registration sensor and alarm devices connected to WebAdapter
	POLLING / 2 1 o 2 instruments
	POLLING / 6 up to 6 instruments
	POLLING / 15 up to 15 instruments
	POLLING / 30 up to 30 instruments
WEB NETWORK MONITORING SYSTEMS EQUIPMENT AND INDIVIDUAL REGISTRATION THROUGH INTERNET
	THE WEB ADAPTER converts readings, alarms and parameters of the devices on web pages accessible through your browser
	WEB ADAPTER ETHERNET
	WEB ADAPTER WIFI

WIRED NETWORK

Recording system and data management

Connectivity & Monitoring systems

EVODATA-100
